Hanging Position Label
Updated:12/1/2025
More than just a position label

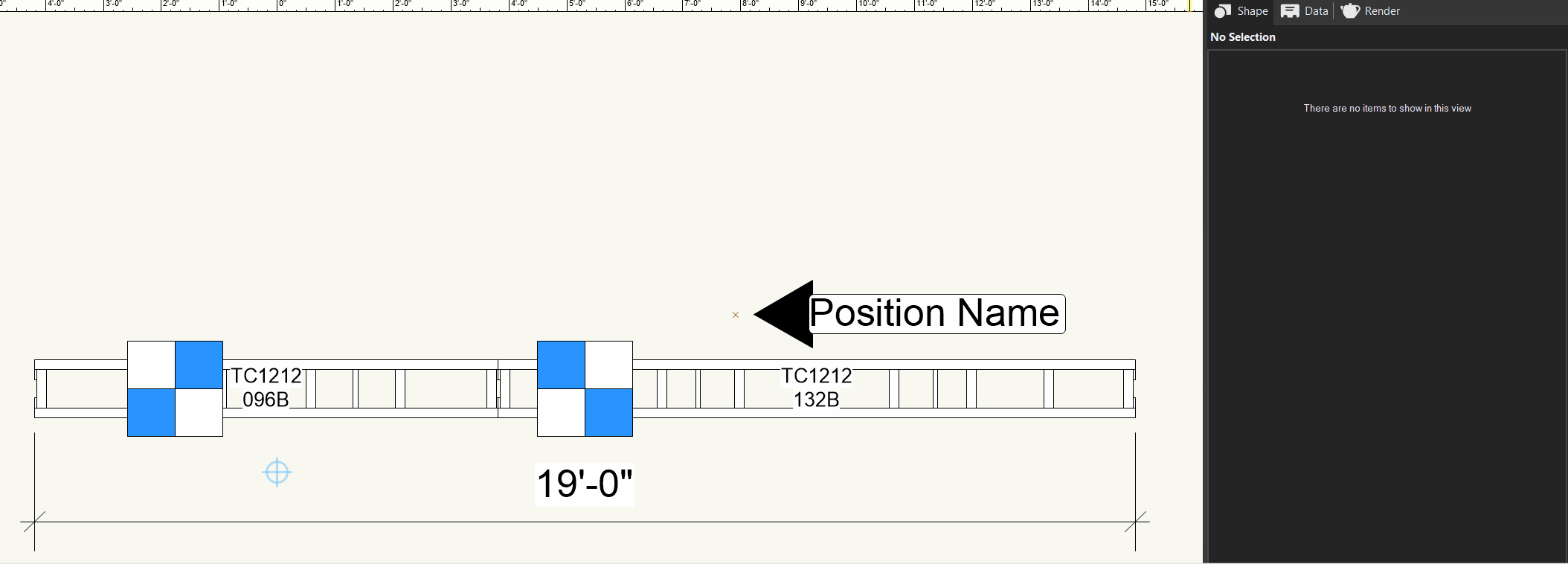

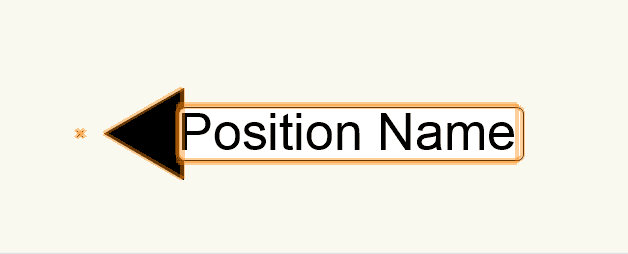

Position Label Display
Lable display include:
Hanging Position Name
Trim Height
(4) Orientations
Label Display Adjusts Dynamically Based On Text Length
Position Data Mode
Data Mode Supports Hanging Position Created By Truss and Lighting Pipe
With Hanging Position Created By Trusses, Label Fetches Following Data:
Position Name Is Auto-Filled
Trim Height Is Auto-Filled
Total Hanging Position Length
Total Truss Counts
Total Truss Weight - Total Weight Of All Trusses At That Hanging Position
With Hanging Position Created By Pipe, Label Fetches Following Data:
Position Name Is Auto-Filled
Trim Height Is Auto-Filled
Total Hanging Position Length
Total Pipe Counts
Total Pipe Weight - Total Weight Of All Pipes At That Hanging Position
When Hoists are Associated With Haning Position, Addtional Data Is Displayed:
Total Hoist Weight(lb)- Chain Weight Included
Hoist Count At This Position​
Additionally, When There Are Misaligned Hoists , A Warning Pops Up and Misaligned Hoists Are Highlighted ​
Report
Create Vectorworks worksheet that includes position details
Report auto generate detailed item list at this hanging position
