Drafting Tools - Vectorworks

Last update - 20240915

Tools is competitable with:

• Vectorworks 2025

• Vectorworks 2024

• Vectorworks 2023

Here are Vectorworks plug-ins for drafting.

Those includes:

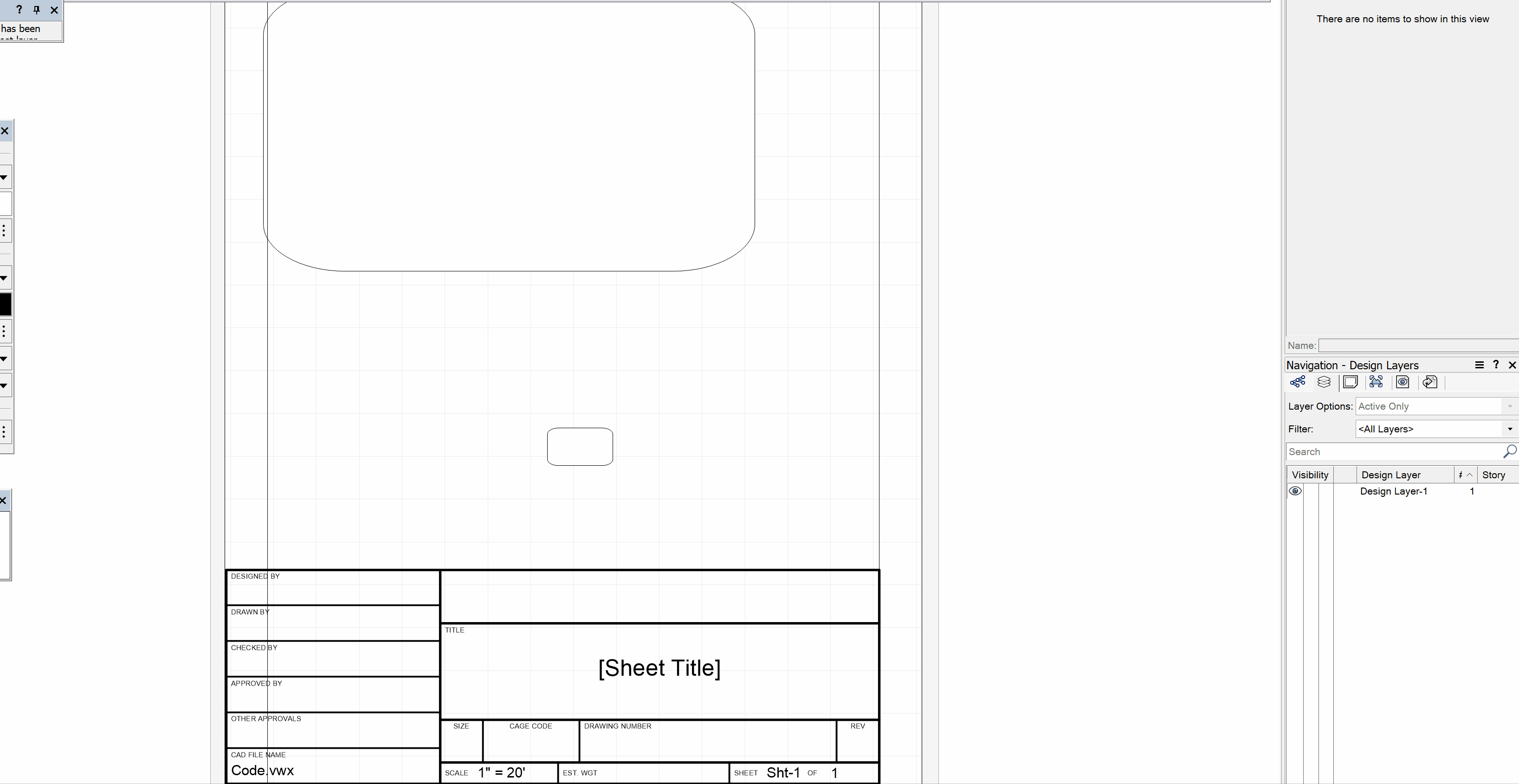

* Auto Fill Scale

Update title block scale field by:

• One viewport is selected - The scaled of that selected viewport is filled to title block.

• More than one viewport is selected - Title block is filled as 'As Noted'

• Viewport exsit on sheet layer but not selected - Ttitle block is filled as 'Not To Scale'

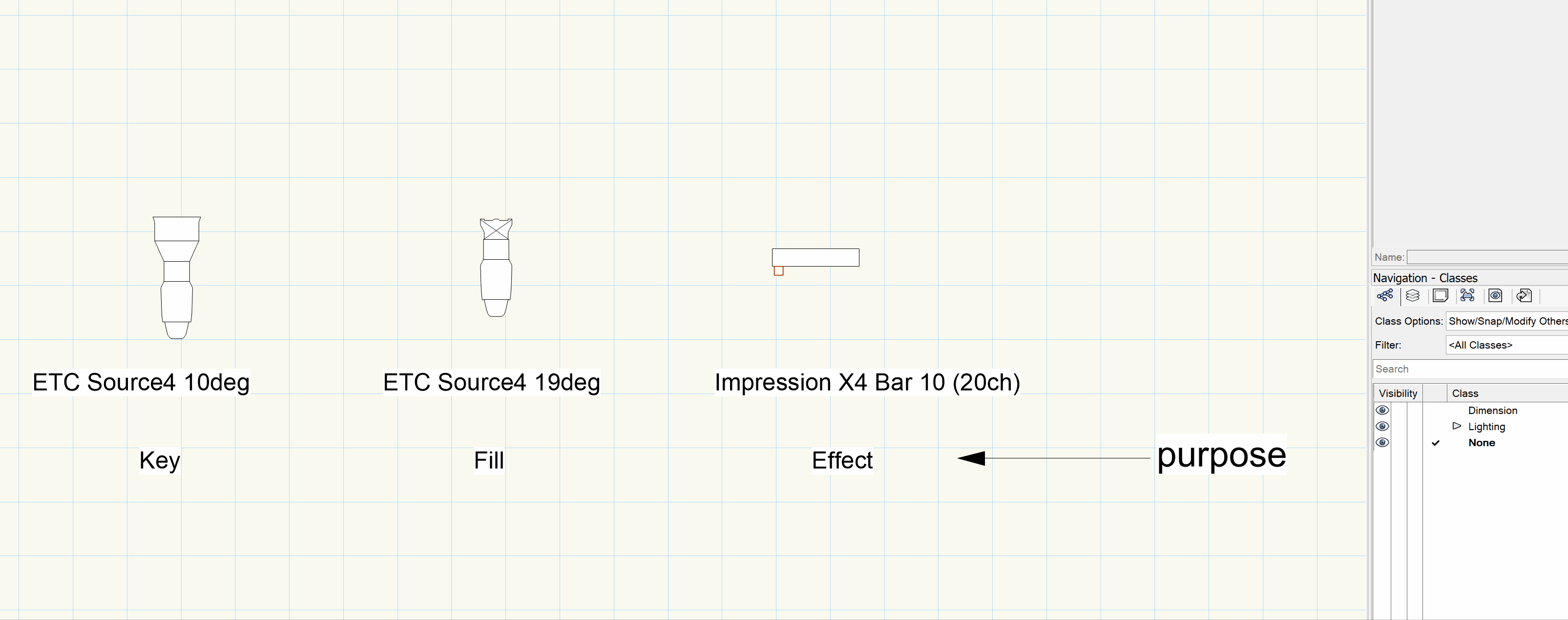

* Classes Per LX Data

• Create classes per lighting device's data. Those five data sources are: Symbol Name / Purpose / Position / Universe / User Field#1

• After creating those classes, assign fixtures to those classes accordingly .

• 根据任意一个灯具的数据，创建对应的class，并把对应的灯具放置到对应的class中。

• 有5种灯具的数据可以作为创建class的来源，他们是： 灯具图形名称 / 灯具目的 / 灯具位置 / Universe / 自定义数据#1

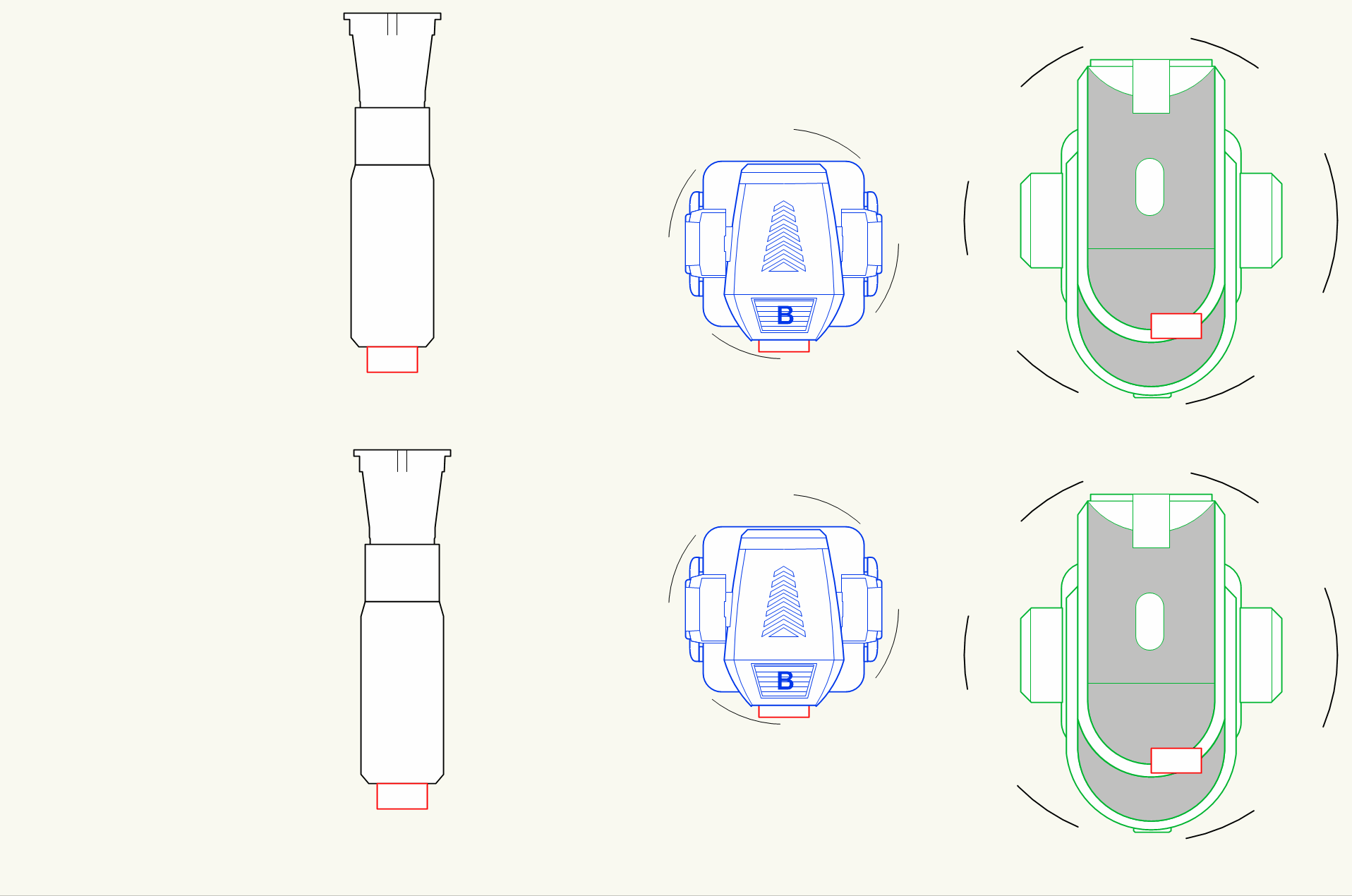

Change LX Symbol Visuals

• Change lighting device lineweight, pen color, Fill color at one click.

• Assign lighting device 2D and 3D components to a selected class.

• 一键改变灯光设备的线宽, 笔触, 填充颜色 ,文件中所有的相同灯具也会同步更新。

• 一键更改灯光设备中2D和3D的原件的类

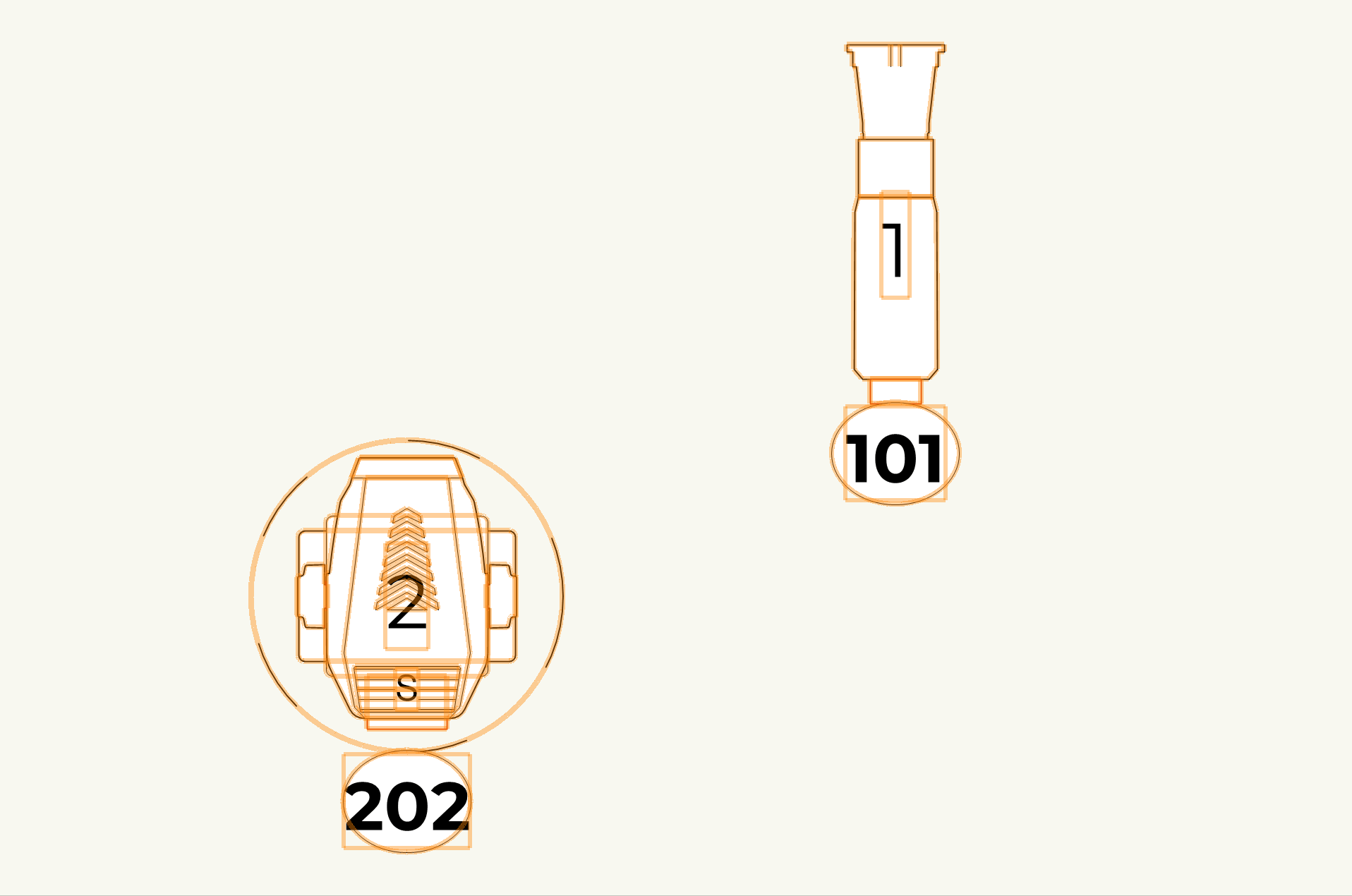

Swap Symbol Positions

• Swap selected plug-in objects' position.

• 交换两个物件的位置。

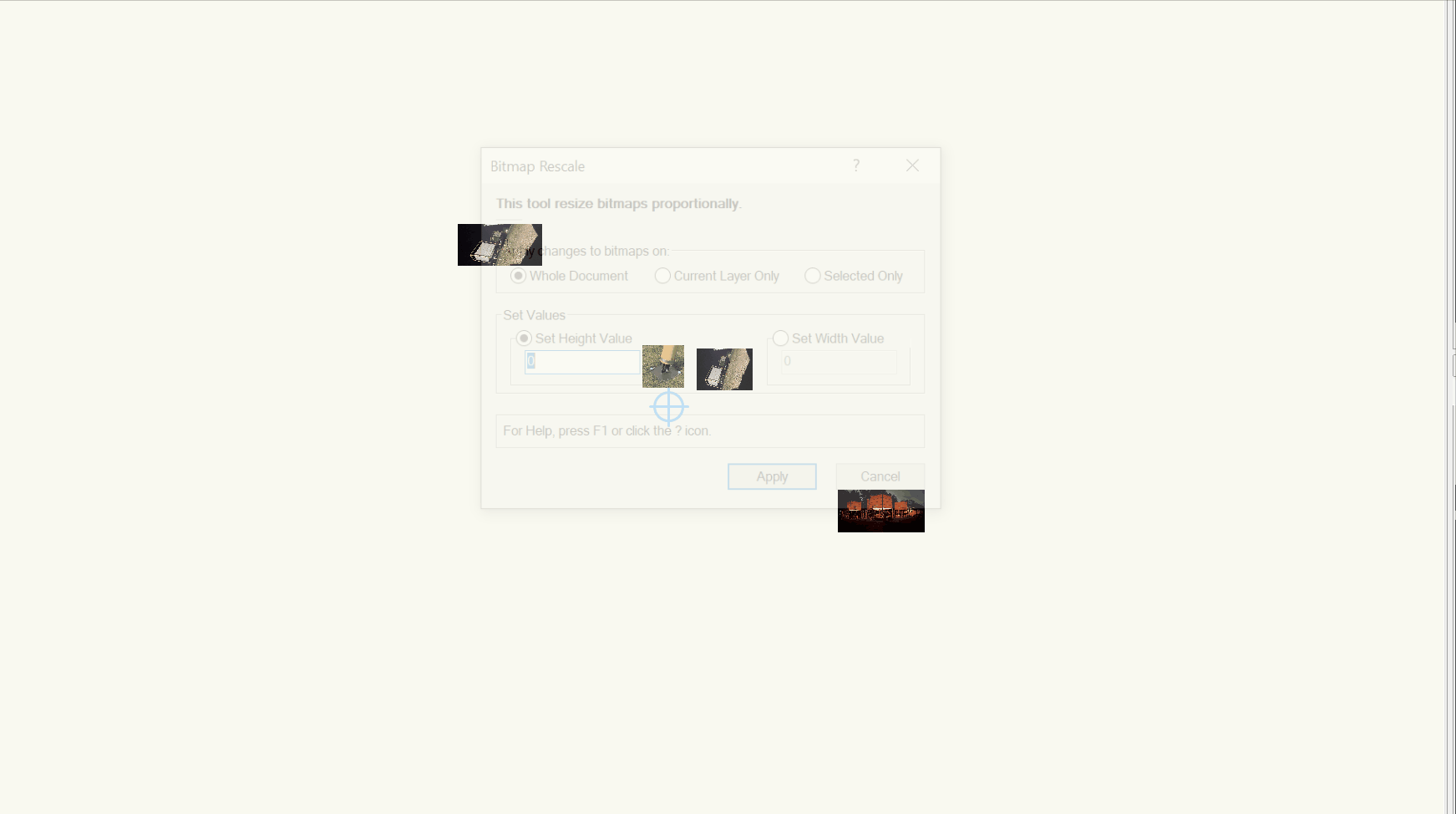

Bitmap Rescale

• Rescale bitmaps proportionally with user-defined width or height

• Apply size changes on bitmaps/PDFs either on current active layer , whole document or only selected on current layer

• 通过用户输入的高度或者宽度，自动调节图片大小并保持原有的纵横比。

• 用户可以选择哪些bitmap需要被修改。当前设计图层, 文件中所有的bitmap/PDFs或者用户选择的bitmap/PDFs。

Create Color Palette

• Create color palette directly from the tool. (up to 10 colors per palette)

• Import / Export color palette (XML file ).

• 直接在工具中创建颜色库（每个颜色库10种颜色为限）

• 导入已有的颜色库文件（XML文件），或者导出颜色库文件作为备份。

Design Layer Tool

• Apply pen color , line weight to objects on certain design layer.

• Remove objects' fill color

• User can assign a class to all objects on that design layer.

• Class can be assigned to nested objects.

• 在选定设计图层后，修改在该图层中图形的笔画颜色,笔触大小。

• 在选定设计图册后，可以修改所有在该图层中图形的class，用户也可以选择新的class是否影响Symbol中的原件class。

PURCHASE | 购买

1. Purchase Page

注意： 请使用正版Vectorworks使用插件，非正版的软件不建议购买。大中华地区用户请联系Vectorworks 大中华区代理U-Vtech https://u-vtech.net/
